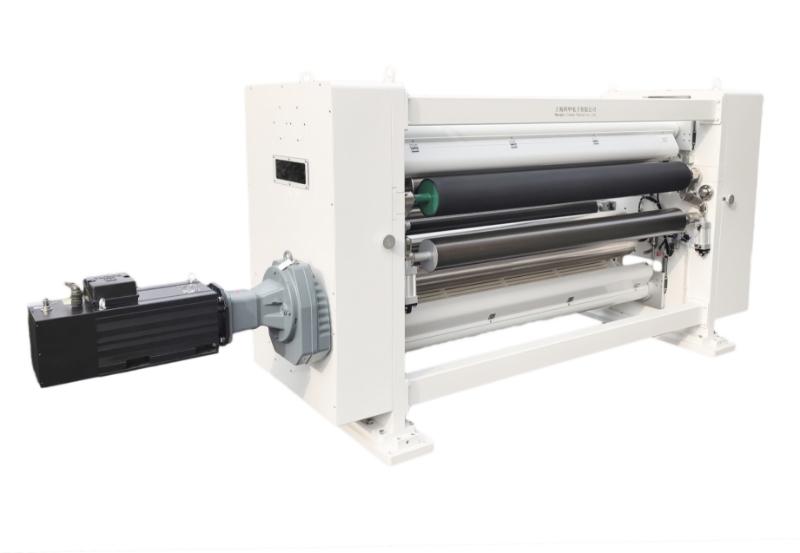

Special discharge system for high speed production line
The linear guide rail of the electrode rises and falls stably, and the position is accurate. At the same time, it makes it more convenient to wear and discharge materials.
The electrode opening protection and roller stop running protection are safe and reliable. Edpi conductive rubber pressure wheel is optional to prevent material wrinkle and scratch.

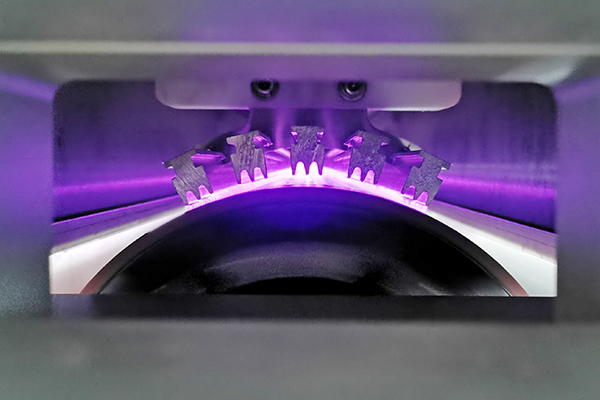

The visual discharge window can check the discharge condition at any time.
Convenient and quick adjustment of electrode air gap ensures accurate and continuous corona treatment effect in wide range.
It can even be adjusted during production.
Corona treatment equipment can be equipped with an extension shaft for direct or indirect motor drive, where thin material is used.
The corona wheel can be equipped with water-cooled structure, which is used to prevent heating materials and redu ce the temperature generated during Corona process.
The side plate is sandblasted aluminum oxide plate, and the outer cover and bearing seat are made of 304 material, which is ozone resistant.
Intelligent matching and tracking of speed and power.
Optional pre heating function with high humidity.
Safe and efficient oil immersed high frequency and high voltage transformer.
Corona equipment has passed the international CE certification.
Processing application: aluminum electrode is used to treat all non-conductive coil, paper and composite coil. Ceramic electrode treatment of conductive and non-conductive coil, aluminum foil, anodized aluminum All kinds of plastic film, paper, etc.
Applicable models: film blowing machine, coating machine, tape casting machine, laminating machine, printing machine, etc.
